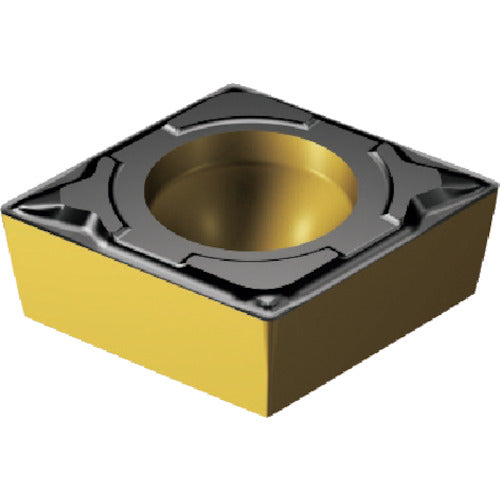

Sandvik Coromant 107 Turning Positive Insert (122) 4425 CCMT09T302-PF 10 pieces

Catalog number: CCMT09T302-PF Features: ● Suitable for most steel turning applications. ● Improved reliability with a new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel applications. ● For rough to finishing applications. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 9.4719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.2 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Finishing ● Breaker: PF ● Thickness (mm): 3.96875 ● Blade length (mm): 9.4719 ● Tip relief angle (°): 7 ● Machining form: Finishing cutting ● CVD coated carbide material
