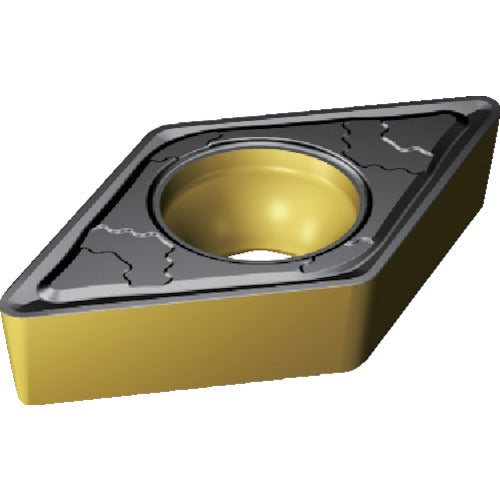

Sandvik Coromant 107 Turning Positive Insert (122) 4425 DCMT 11 T3 04-PMC 10 pieces

Catalogue number: DCMT 11 T3 04-PMC Features: ● Suitable for most steel turning applications. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel applications. ● For rough to finishing applications. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Insert shape: Diamond 55° ● Effective cutting edge length LE (mm): 11.2279 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: PMC ● Thickness (mm): 3.96875 ● Cutting edge length (mm): 11.2279 ● Insert relief angle (°): 7 ● Machining type: Medium cutting ● CVD coating material type
