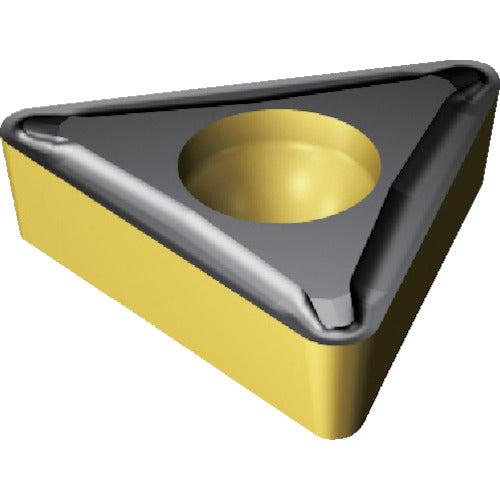

Sandvik Coromant 107 turning positive insert (122) 4425 TCMT06T104-UF 10 pieces

Catalog number: TCMT06T104-UF Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finishing processes. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Chip shape: Triangle ● Effective cutting edge length LE (mm): 6.22 ● Inscribed circle IC (mm): 3.96875 ● Thickness S (mm): 1.98 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 2.2 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Finishing ● Breaker: UF ● Thickness (mm): 1.98 ● Blade length (mm): 6.22 ● Chip relief angle (°): 7 ● Machining type: Finishing cutting ● CVD coating material type
