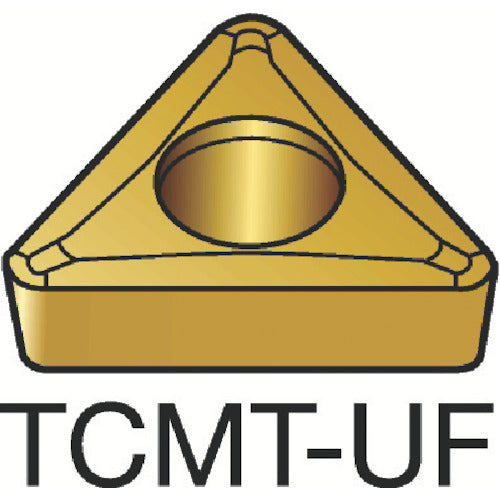

Sandvik Coromant 107 Turning Positive Insert (130) 1125 TCMT 11 02 04-UF 10 pieces

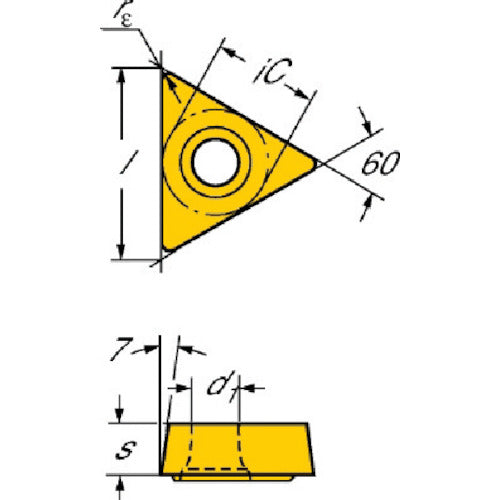

Catalog number: TCMT 11 02 04-UF Features: ●Excellent performance when smooth cutting and excellent cutting edge toughness or surface roughness are required. ●Excellent thermal shock resistance and ideal for light interrupted cutting. Applications: ●For general turning and stainless steel processing. ●For medium to low cutting speeds. Specifications: ● Suitable workpiece material: PMNS ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 10.34 ● Inscribed circle IC (mm): 6.35 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 2.8 ● Main relief angle AN (°): 7 ● Coating: TiAlN + TiAlN ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: UF ● Thickness (mm): 2.38125 ● Cutting edge length (mm): 10.34 ● Insert relief angle (°): 7 ● Machining type: Finishing cutting ● PVD coated ultra-fine grain carbide material
