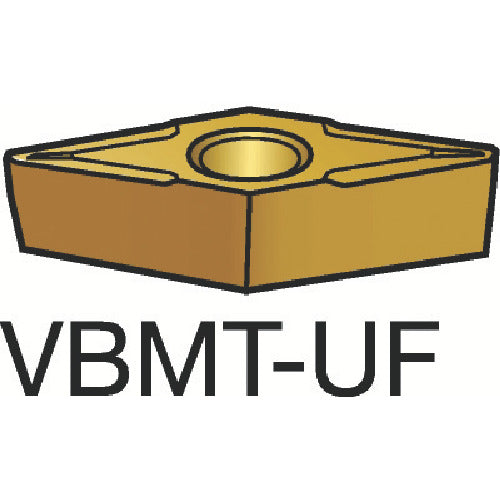

Sandvik Coromant 107 Turning Positive Insert (130) 5015 VBMT 11 02 04-UF 10 pieces

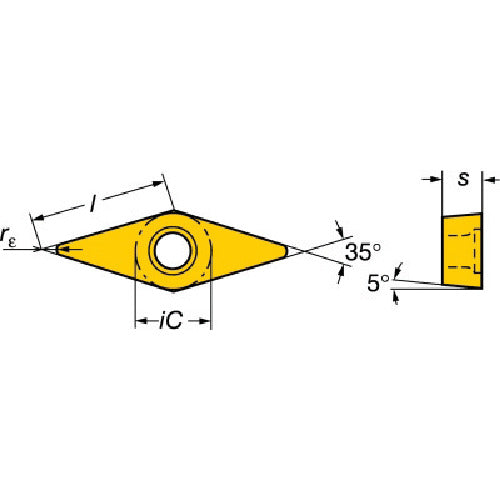

Catalogue number: VBMT 11 02 04-UF Features: ●Excellent resistance to built-up edge and plastic deformation. Applications: ●For general turning steel. ●For finishing of low alloy and alloy steel. Specifications: ●Suitable workpiece: PK ●Insert shape: 35° rhombus ●Effective cutting edge length LE (mm): 10.6709 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 5 ●Coating: Uncoated ●Machining type: Finishing ●Corner radius (mm): 0.3969 ●Breaker: UF ●Thickness (mm): 2.38125 ●Blade length (mm): 10.6709 ●Insert relief angle (°): 5 ●Machining form: Finishing cutting ●Non-coated cermet
