Sandvik Coromant 107 Turning Positive Insert (130) H10 VCGX 16 04 08-AL 10 pieces
Sandvik Coromant 107 Turning Positive Insert (130) H10 VCGX 16 04 08-AL 10 pieces
Regular price
¥24,096
Regular price
Sale price
¥24,096
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

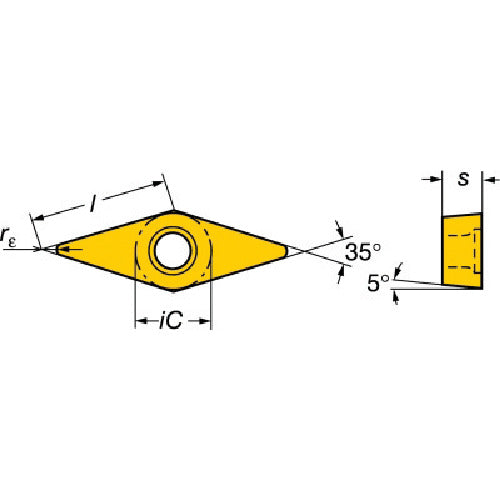

Catalog number: VCGX 16 04 08-AL Features: ● Excellent abrasion resistance and sharp cutting edge. Applications: ● For general turning of non-ferrous metals. ● For rough cutting to finish turning of aluminum alloys. Specifications: ● Suitable workpiece: NS ● Insert shape: 35° rhombus ● Coating: Uncoated ● Corner radius (mm): 0.7938 ● Breaker: AL ● Thickness (mm): 4.7625 ● Blade length (mm): 15.8063 ● Insert clearance angle (°): 7 ● Machining type: Medium cutting ● Non-coated carbide material Material/Finish: ● Carbide alloy
