サンドビック（株）コロマントカンパニー
Sandvik Coromant 107 Turning Positive Insert (130) H13A CCMW 06 02 04 10 pieces
Sandvik Coromant 107 Turning Positive Insert (130) H13A CCMW 06 02 04 10 pieces
Regular price
¥9,048
Regular price
Sale price
¥9,048
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

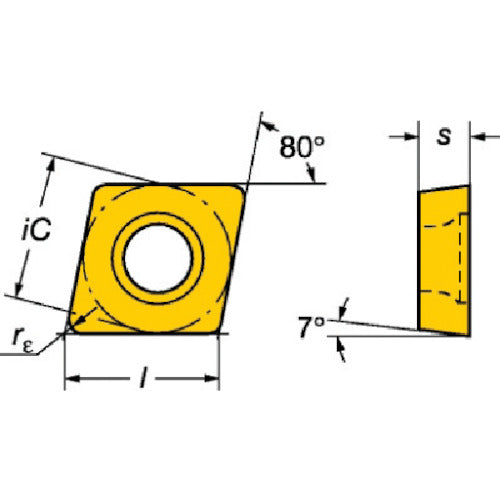

Catalog number: CCMW 06 02 04 Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For medium to rough machining of aluminum alloys. Specifications: ●Suitable workpiece: MKNS ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 6.048 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 7 ●Coating: Uncoated ●Machining type: Medium ●Breaker: CMW ●Thickness (mm): 2.38125 ●Blade length (mm): 6.048 ●Insert relief angle (°): 7 ●Machining form: Medium cutting ●Non-coated carbide material
