Sandvik Coromant 107 Turning Positive Insert (130) H13A TCGT 11 02 08-UM 10 pieces

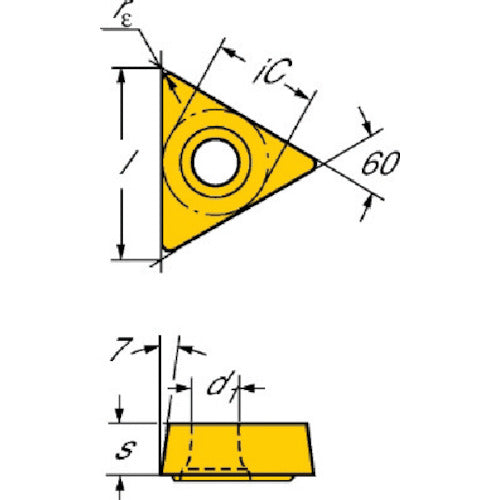

Catalog number: TCGT 11 02 08-UM Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For medium to rough machining of aluminum alloys. Specifications: ●Suitable workpiece: PMKNS ●Insert shape: Triangle ●Effective cutting edge length LE (mm): 9.94 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 7 ●Coating: Uncoated ●Machining type: Medium ●Breaker: UM ●Thickness (mm): 2.38125 ●Blade length (mm): 9.94 ●Insert relief angle (°): 7 ●Machining form: Medium cutting ●Non-coated carbide material
