Sandvik CoroTurn 107 Turning CBN Positive Insert (620) 7015 CCGW09T304T01020-FWH 5 pieces

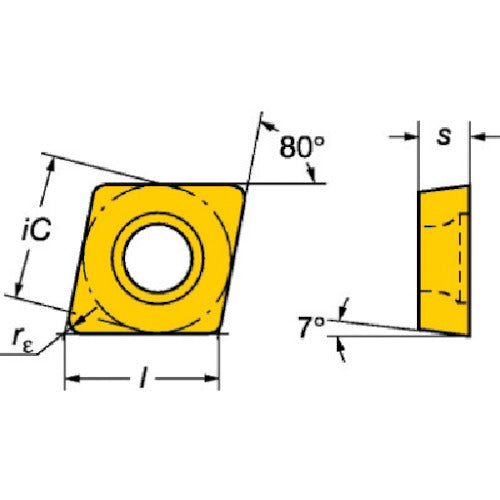

Catalog number: CCGW09T304T01020-FWH Features: ● A material with low CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For high-speed continuous cutting and light intermittent cutting. Specifications: ● Suitable workpiece: H ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 1.8 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiN ● Machining type: Finishing ● Breaker: WH ● Thickness (mm): 3.96875 ● Blade length (mm): 1.8 ● Tip relief angle (°): 7 ● Machining form: Finishing cutting ● PVD coating material type CBN tip
