Sandvik Coromant 107 Turning CBN Positive Insert (620) 7025 CCGW09T304S01020FWH 5 pieces

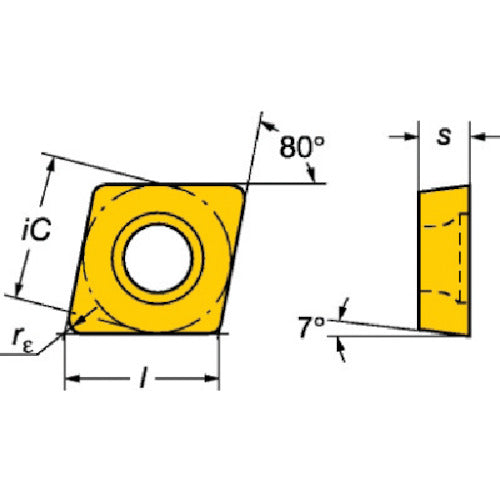

Catalog number: CCGW09T304S01020FWH Features: ● A material with a medium CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For intermittent heavy cutting or medium-speed continuous cutting. Specifications: ● Suitable workpiece: H ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 2.42 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.397 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: Uncoated ● Machining type: Finishing ● Breaker: WH ● Thickness (mm): 3.96875 ● Blade length (mm): 2.42 ● Insert relief angle (°): 7 ● Machining form: Finishing cutting ● Non-coated CBN insert
