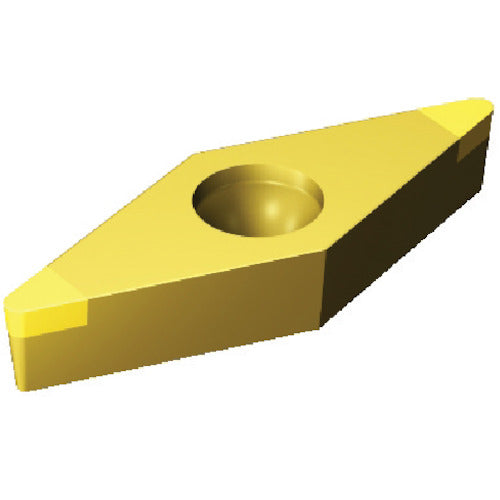

Sandvik CoroTurn 107 Turning CBN Positive Insert (620) 7025 VBGW160404S01020F 5 pieces

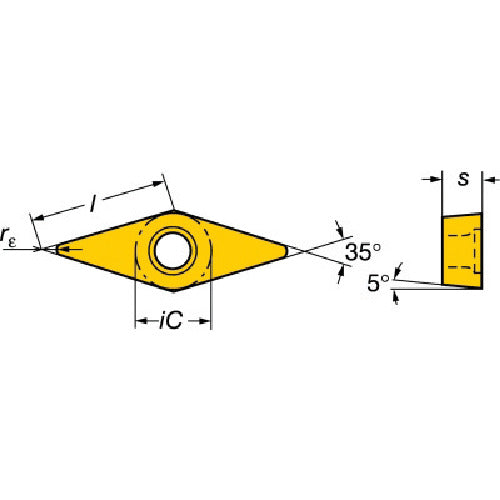

Catalog number: VBGW160404S01020F Features: ● A material with a medium CBN content that demonstrates high machining performance. ● For intermittent heavy cutting of high-hardness steel or medium-speed continuous cutting. Applications: ● For general turning and high-hardness steel machining. Specifications: ● Suitable workpiece: H ● Insert shape: 35° rhombus ● Effective cutting edge length LE (mm): 3 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 5 ● Coating: Uncoated ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Thickness (mm): 4.7625 ● Blade length (mm): 3 ● Insert relief angle (°): 5 ● Machining form: Finishing cutting ● Uncoated
