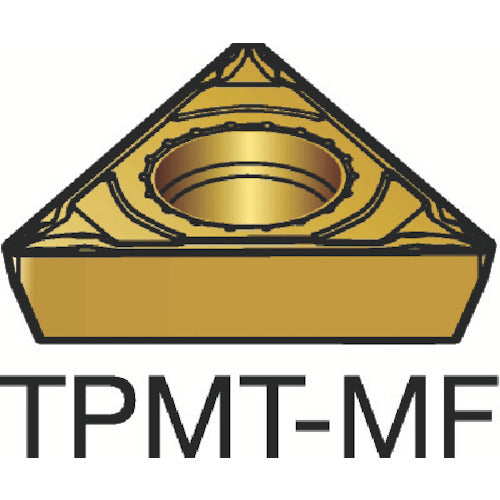

Sandvik Coromant 111 Turning Positive Insert (120) 2015 TPMT 09 02 04-MF 10 pieces

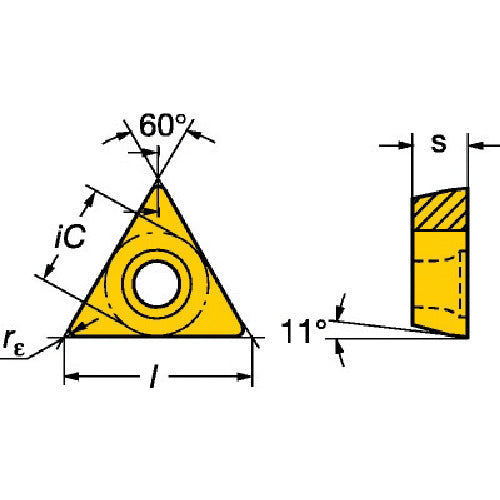

Catalog number: TPMT 09 02 04-MF Features: ● First recommended material for continuous cutting. Applications: ● For general turning and stainless steel processing. ● For medium to high cutting speeds. Specifications: ● Suitable workpiece: M ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 9.4987 ● Inscribed circle IC (mm): 5.55625 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 2.5 ● Main relief angle AN (°): 11 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: MF ● Thickness (mm): 2.38125 ● Blade length (mm): 9.4987 ● Insert relief angle (°): 11 ● Processing type: Finishing cutting ● CVD coated carbide material
