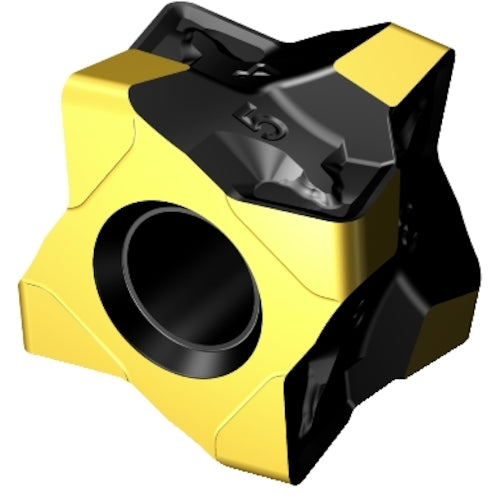

Sandvik CoroTurn 300 turning insert (310) 4425 3-80-101112-8-M5W 2 pieces

Catalog number: 3-80-101112-8-M5W Features: ● Compatible with most steel turning processes. ● External diameter and end face turning insert for high quality and high productivity Applications: ● For steel. Specifications: ● Suitable workpiece: PK ● Effective cutting edge length LE (mm): 4 ● Thickness S (mm): 11 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: M5W ● Thickness (mm): 11 ● Blade length (mm): 4 ● Tip relief angle (°): 0 ● Machining type: Medium cutting ● CVD coating material type
