Sandvik Coromant RC Shank Bit for Negative Inserts (410) DTGNR 2525M 16 1 piece

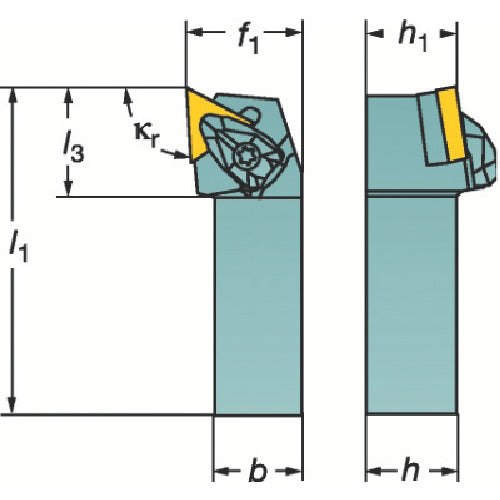

Catalogue number: DTGNR 2525M 16 Features: ●Double clamp holder for turning with excellent rigidity. ●Very easy to handle. ●Inserts and shims can be replaced with one wrench. ●Inserts can be easily replaced from the back of the holder. ●A wide variety of inserts can be attached by replacing the clamp set and shims. Applications: ●External turning and negative inserts. ●For rough machining to finishing. Specifications: ●Compatible insert: TN16 ●Gauge insert: TNMG 16 04 08 ●Insertion angle: 91 ●b: 25 ●h: 25 ●f1: 32 ●l1: 150 ●l3: 24.6 ●Insert tightening torque: 1.7 ●Clamp type: CoroTurn RC double clamp
