Sandvik CoroMill Plura Solid Carbide End Mill (730) Blade diameter 4mm Blade length 10mm Shank diameter 8mm Total length 80mm 1630 R216.52-04040RAL10G 1 piece

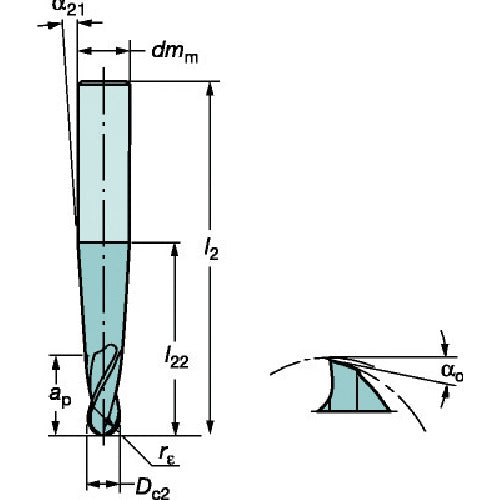

Catalog number: R216.52-04040RAL10G Features: ●Solid end mill that demonstrates the highest productivity for all work materials and machining. ●Double flute shape achieves both rigidity and chip disposal. Applications: ●Work materials: steel, stainless steel, cast iron, non-ferrous, heat-resistant alloys, hard materials. ●For end mill machining of all work materials. Specifications: ● Blade diameter (mm): 4 ● Ball radius (mm): 2 ● Blade length (mm): 10 ● Total length (mm): 80 ● Shank diameter (mm): 8 ● Number of blades (pieces): 2 ● Surface treatment: TiAlN multi-layer coating ● Twist angle (°): 30 ● Number of blades: 2 ● α21 (°): 3 ● α0 (°): 16 ● ZEPP: 2 ● RE: 2.0 ● LU: 42.9 ● LF: 80 ● DMM: 8.0 ● DCX: 4.0 ● APMX: 10.0 ● Dc2 ● DC3 ● Zn Material/Finish: ● Ultra-fine grain carbide alloy
