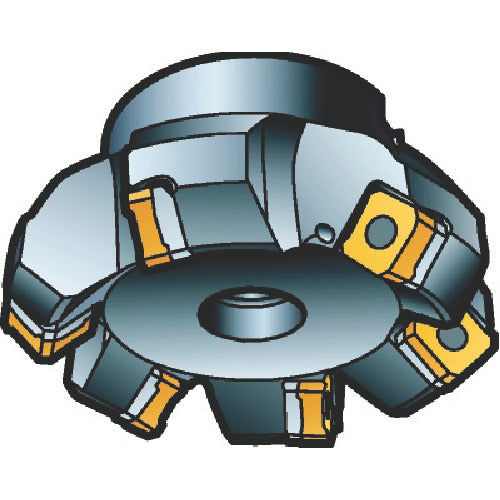

Sandvik CoroMill 345 cutter (455) 345-063Q22-13M 1 unit
Sandvik CoroMill 345 cutter (455) 345-063Q22-13M 1 unit
Regular price
¥101,072
Regular price
Sale price
¥101,072
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

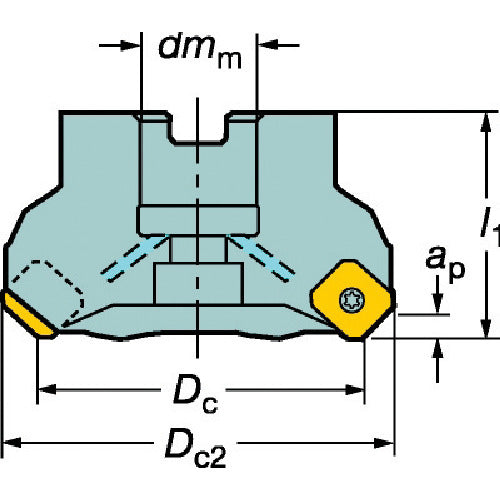

Catalog number: 345-063Q22-13M Features: ●Low cutting resistance. ●Suitable for mirror finishing and high-speed machining. Applications: ●Front milling. ●For all work materials. ●Arbor mounting (mm). Specifications: ●Number of teeth CICT (pieces): 5 ●Cutting diameter DC (mm): 63 ●Insertion angle KAPR (°): 45 ●Maximum cutting diameter DCX (mm): 77.08 ●Number of teeth: 5 ●Number of teeth (pieces): 5 ●Gauge tip: 345R-1305 ●Insertion angle: 45 ●Dc: 63 ●dmm: 22 ●l1: 45 ●Maximum insertion: 6 ●Weight (KG): 0.417 ●Maximum rotation speed: 15500 ●Dc2: 77.08 ●Pitch: Cross pitch ●High precision ●8 corner specifications
