サンドビック（株）コロマントカンパニー

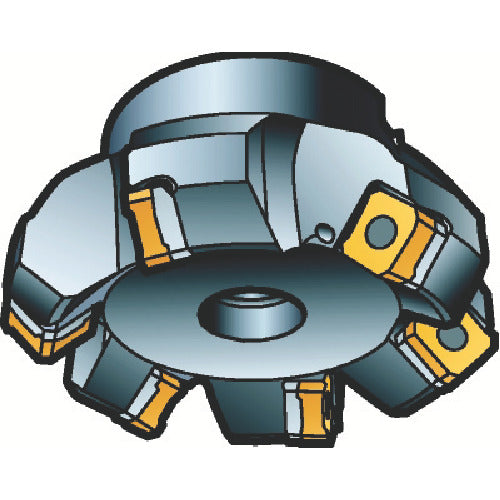

Sandvik CoroMill 345 cutter (455) 345-100Q32-13L 1 unit
Sandvik CoroMill 345 cutter (455) 345-100Q32-13L 1 unit
Regular price
¥122,390
Regular price
Sale price
¥122,390
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

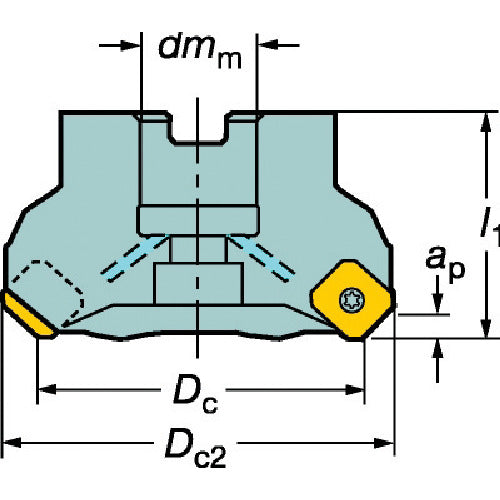

Catalog number: 345-100Q32-13L Features: ●Low cutting resistance. ●Suitable for mirror finishing and high-speed machining. Applications: ●Front milling. ●For all work materials. ●Arbor mounting (mm). Specifications: ●Number of teeth CICT (pieces): 5 ●Cutting diameter DC (mm): 100 ●Insertion angle KAPR (°): 45 ●Maximum cutting diameter DCX (mm): 114.08 ●Number of teeth: 5 ●Number of teeth (pieces): 5 ●Gauge tip: 345R-1305 ●Insertion angle: 45 ●Dc: 100 ●dmm: 32 ●l1: 50 ●Maximum insertion: 6 ●Weight (KG): 1.73 ●Maximum rotation speed: 12200 ●Dc2: 114.08 ●Pitch: Course pitch ●High precision ●8 corner specifications
View full details
