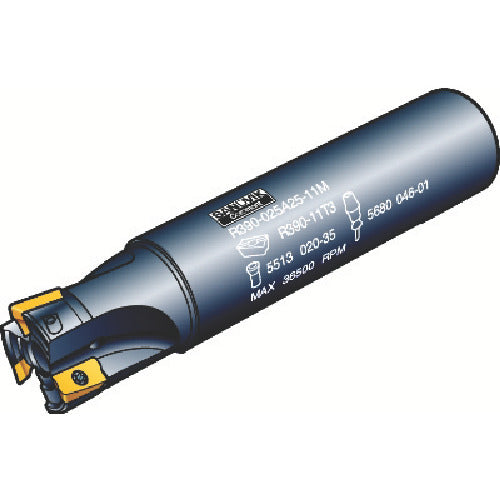

Sandvik CoroMill 390 End Mill (440) R390-032A32L-17L 1 piece
Sandvik CoroMill 390 End Mill (440) R390-032A32L-17L 1 piece
Regular price
¥56,179
Regular price
Sale price
¥56,179
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

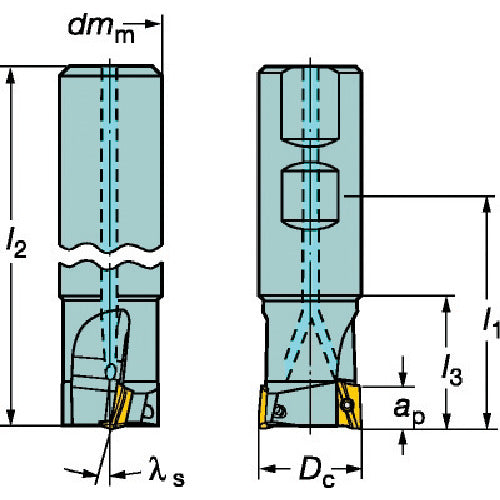

Catalogue number: R390-032A32L-17L Features: ●Comparable to solid end mills. ●No mismatch. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Ramping. ●Compatible with all types of machining. ●Cylindrical shank. Specifications: ●Number of teeth CICT (pieces): 2 ●Cutting diameter DC (mm): 32 ●Insertion angle KAPR (°): 90 ●Total length OAL (mm): 250 ●Number of teeth: 2 ●Number of teeth (pieces): 2 ●Total length (mm): 250 ●Gauge tip: R390-17.. ●l2: 250 ●Insertion angle: 90 ●Dc: 32 ●dmm: 32 ●l3: 65 ●Maximum insertion: 15.7 ●Weight (KG): 1.451 ●Maximum rotation speed: 7300 ●Pitch: Coarse pitch ●High precision
