サンドビック（株）コロマントカンパニー
Sandvik CoroMill 390 cutter (440) R390-025C6-11M110 1 piece
Sandvik CoroMill 390 cutter (440) R390-025C6-11M110 1 piece
Regular price
¥61,572
Regular price
Sale price
¥61,572
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

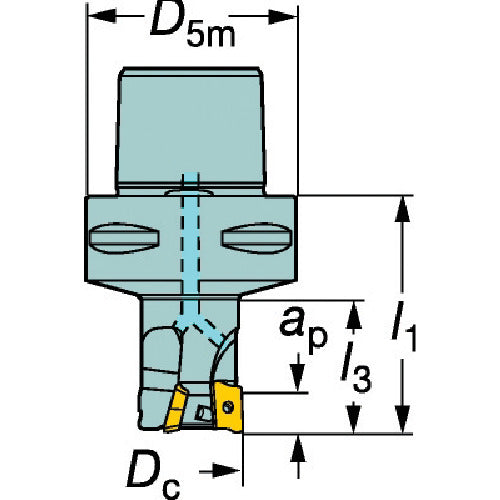

Catalogue number: R390-025C6-11M110 Features: ●Low cutting resistance. ●True 90°. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Ramping. ●Compatible with all types of machining. ●Coromant Capto Specifications: ●Number of teeth CICT (pieces): 3 ●Cutting diameter DC (mm): 25 ●Insertion angle KAPR (°): 90 ●Number of teeth: 3 ●Number of teeth (pieces): 3 ●Gauge tip: R390-11.. ●Insertion angle: 90 ●Dc: 25 ●D5m: 63 ●dmm: 44 ●l1: 110 ●l3: 45 ●Maximum insertion: 10 ●Weight (KG): 1.65 ●Maximum speed: 36500 ●Pitch: Cross pitch ●High precision
