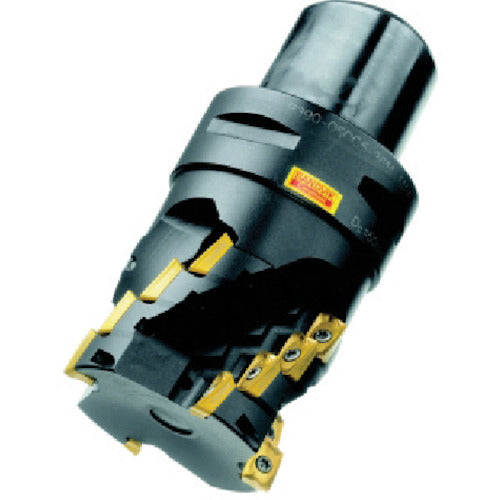

Sandvik CoroMill 390 Long Edge Cutter (440) R390-044C4-43L 1 piece
Sandvik CoroMill 390 Long Edge Cutter (440) R390-044C4-43L 1 piece
Regular price
¥132,924
Regular price
Sale price
¥132,924
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

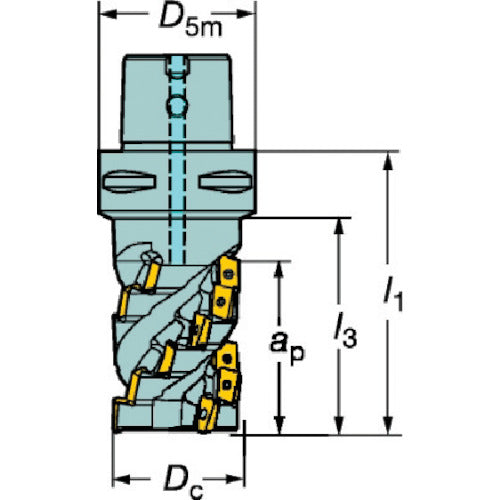

Catalogue number: R390-044C4-43L Features: ●Low cutting resistance. ●Few steps. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Ramping. ●Compatible with all types of machining. ●Coromant Capto Specifications: ●Number of teeth CICT (pieces): 2 ●Cutting diameter DC (mm): 44 ●Insertion angle KAPR (°): 90 ●Number of teeth: 2 ●Number of teeth (pieces): 2 ●Gauge tip: R390-18.. ●Insertion angle: 90 ●Dc: 44 ●D5m: 40 ●dmm: 28 ●l1: 78 ●l3: 78 ●Maximum insertion: 43 ●Weight (KG): 0.982 ●Maximum rotation speed: 8600 ●Pitch: Coarse pitch ●High precision
