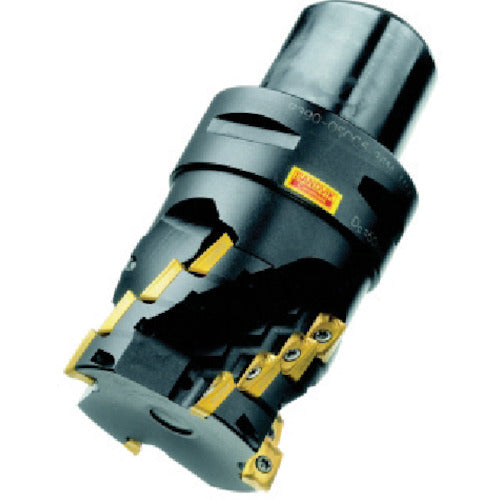

Sandvik CoroMill 390 Long Edge Cutter (440) R390-050C5-54M 1 piece
Sandvik CoroMill 390 Long Edge Cutter (440) R390-050C5-54M 1 piece
Regular price
¥265,848
Regular price
Sale price
¥265,848
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

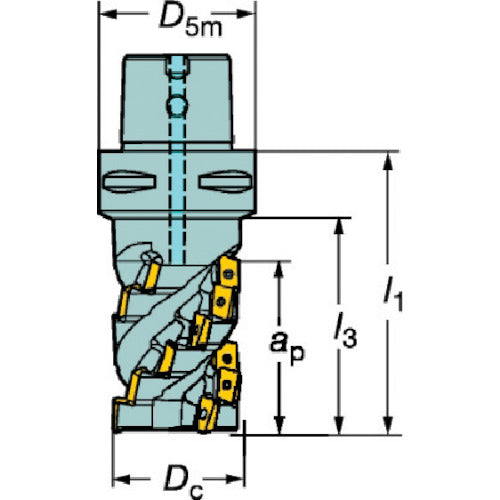

Catalogue number: R390-050C5-54M Features: ●Low cutting resistance. ●Few steps. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Ramping. ●Compatible with all types of machining. ●Coromant Capto Specifications: ●Number of teeth CICT (pieces): 4 ●Cutting diameter DC (mm): 50 ●Insertion angle KAPR (°): 90 ●Number of teeth: 4 ●Number of teeth (pieces): 4 ●Gauge tip: R390-11.. ●Insertion angle: 90 ●Dc: 50 ●D5m: 50 ●dmm: 35 ●l1: 89 ●l3: 67 ●Maximum insertion: 54 ●Weight (KG): 1.46 ●Maximum rotation speed: 16600 ●Pitch: Cross pitch ●High precision
