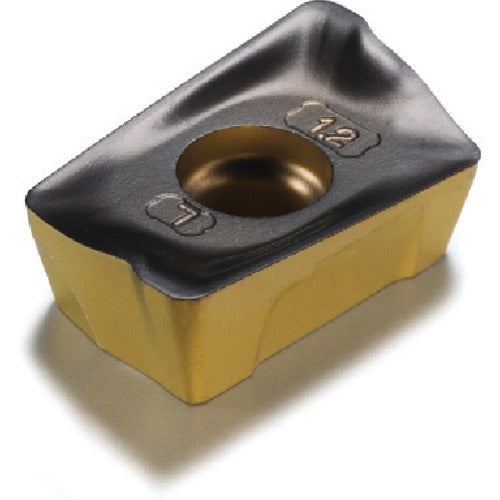

Sandvik CoroMill 390 insert 4230 R390-180620M-PM 10 pieces

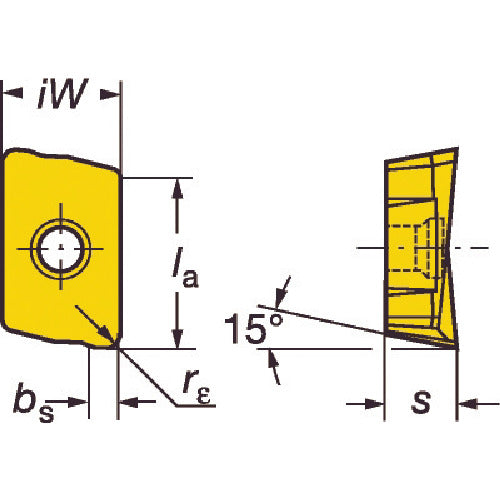

Catalog number: R390-180620M-PM Features: ● Insert for CoroMill 390. ● Sharp cutting edge with low resistance. ● The cutting edge has a precise twist design, which provides dimensional accuracy that is almost as good as that of a precision-ground solid tool. Applications: ● For face milling, shoulder milling, and groove machining. ● Universal cutter insert that can be used for all types of machining and work materials. Specifications: ● Direction: Right ● Compatible insert: Positive insert ● Insert size: 18 ● s: 6.33 ● re: 2.0 ● Maximum cutting depth: 16 ● Maximum radial allowance: 15.7 ● iW: 11 ● bs: 0.5 ● Clamp type: CoroTurn 107 screw clamp
