サンドビック（株）コロマントカンパニー

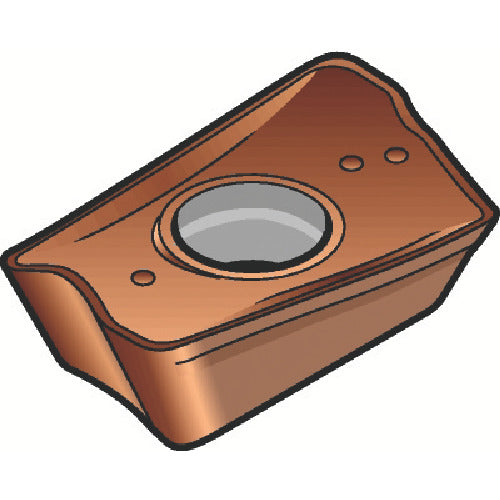

Sandvik CoroMill 390 insert 4240 R390-17 04 60E-PM 10 pieces
Sandvik CoroMill 390 insert 4240 R390-17 04 60E-PM 10 pieces
Regular price
¥35,160
Regular price
Sale price
¥35,160
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

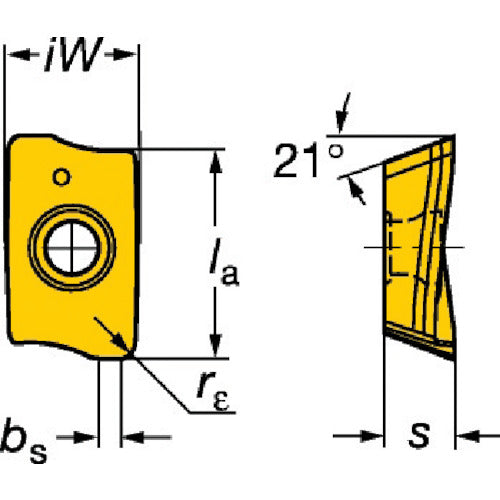

Catalog number: R390-17 04 60E-PM Features: ●Insert for CoroMill 390. ●Sharp cutting edge with low resistance. ●The cutting edge has a precise twist design, which provides dimensional accuracy very close to that of a precision-ground solid tool. Applications: ●For face milling, shoulder milling, and groove machining. ●Universal cutter insert that can be used for all types of machining and work materials. Specifications: ●Direction: Right ●Insert size: 17 ●s: 4.7625 ●re: 6 ●Maximum cutting depth: 15 ●Maximum radial allowance: 8.5 ●iW: 9.6
