Sandvik CoroMill 390 Milling Insert (350) Grade 1020 1020 R390170408MKM 10 Pieces

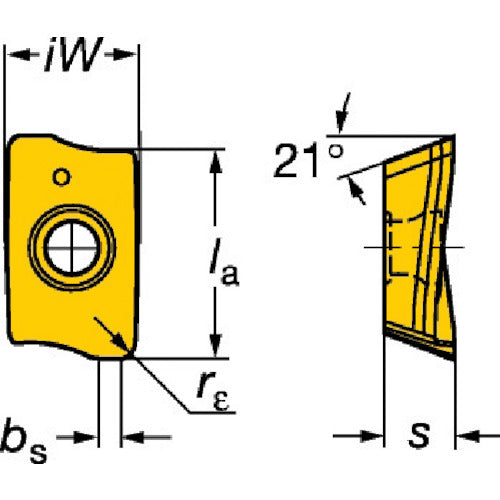

Catalog number: R390170408MKM Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance allows for trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy that is close to that of precision-ground solid tools. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Compatible holder: R390 ●Compatible workpiece: Cast iron ●Insert shape: Rectangular ●Blade length (mm): 15.7 ●Thickness (mm): 4.7625 ●Direction: Right ●Maximum cutting depth: 16 ●Maximum radial allowance: 8.5 ●Insert size: 17 ●s: 4.7625 ●re: 0.8 ●iW: 9.6 ●bs: 1.5 ●la ●Coated carbide insert Material/Finish: ●Fine-grain carbide alloy
