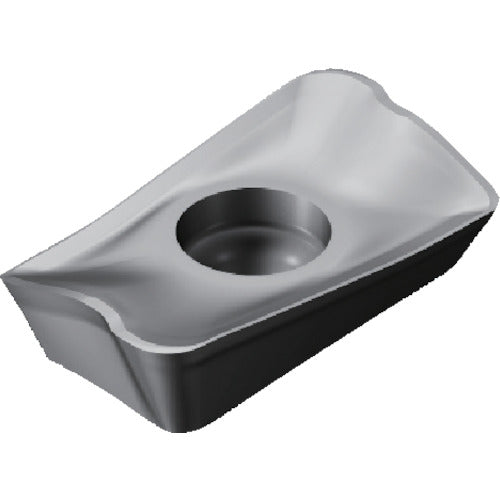

Sandvik CoroMill 390 Milling Insert (350) Material H13A H13A R390-11T304E-NL 10 pieces

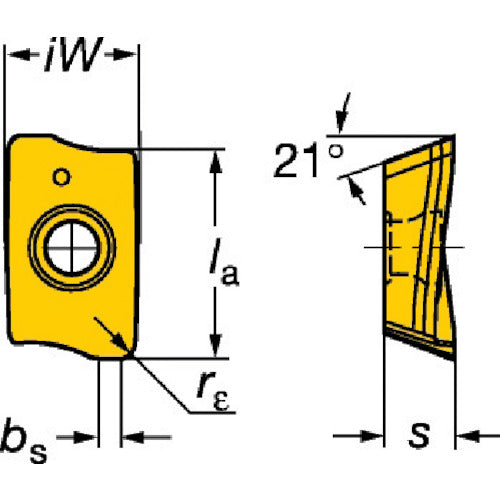

Catalog number: R390-11T304E-NL Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance allows for trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy that is close to that of precision-ground solid tools. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Compatible holder: R390 ●Compatible workpiece: non-ferrous metals ●Insert shape: rectangular ●Blade length (mm): 10 ●Thickness (mm): 3.59 ●Direction: right ●Maximum cutting depth: 10 ●Maximum radial allowance: 5.5 ●Insert size: 11 ●s: 3.59 ●re: 0.4 ●iW: 6.8 ●bs: 0.9 ●Coated carbide insert Material/Finish: ●Fine-grain carbide alloy
