Sandvik CoroMill 390 Milling Insert (350) Material H13A H13A R390-17 04 08E-NL 10 pieces

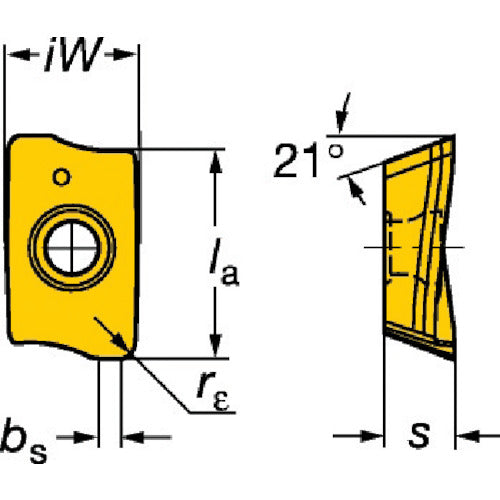

Catalog number: R390-17 04 08E-NL Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance ensures trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy that is close to that of precision-ground solid tools. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Compatible holder: R390 ●Compatible workpiece: non-ferrous metals ●Insert shape: rectangular ●Blade length (mm): 15.7 ●Thickness (mm): 4.7625 ●Direction: right ●Maximum cutting depth: 15.7 ●Maximum radial allowance: 8.5 ●Insert size: 17 ●s: 4.7625 ●re: 0.8 ●iW: 9.6 ●bs: 1.5 ●la ●Coated carbide insert Material/Finish: ●Fine-grain carbide alloy
