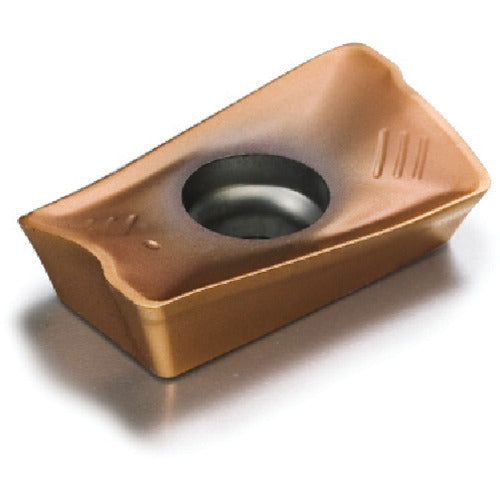

Sandvik CoroMill 390 milling insert (350) grade J048 J048 R390-17 04 08M-PM 10 pieces

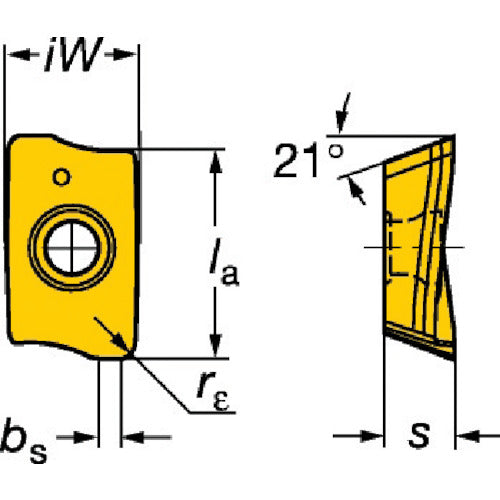

Catalog number: R390-17 04 08M-PM Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance ensures trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy that is close to that of precision-ground solid tools. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Compatible holder: R390 ●Insert shape: Rectangular ●Blade length (mm): 15.7 ●Thickness (mm): 4.7625 ●Direction: Right ●Insert size: 17 ●s: 4.7 ●re: 0.8 ●la: 17 ●iW: 9.6 ●bs: 1.5 ●Maximum radial allowance ●Maximum cutting depth ●Coated carbide insert Material/Finish: ●Fine-grain carbide alloy
