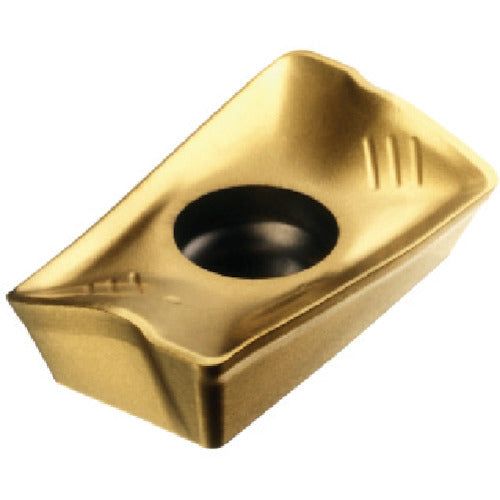

Sandvik CoroMill 390 Milling Insert (350) 4220 R390-11 T3 16M-PM 10 pieces
Sandvik CoroMill 390 Milling Insert (350) 4220 R390-11 T3 16M-PM 10 pieces
Regular price
¥23,268
Regular price
Sale price
¥23,268
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

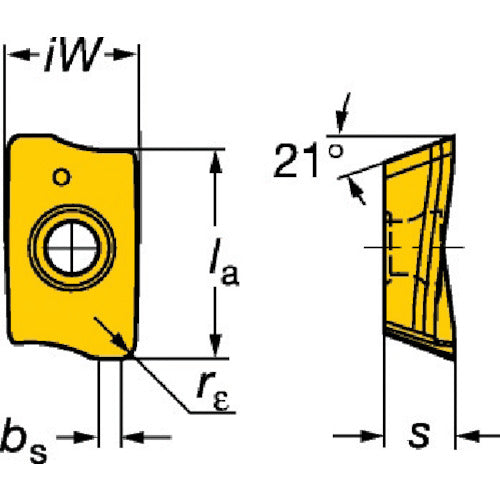

Catalog number: R390-11 T3 16M-PM Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance ensures trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy very close to that of a precision-ground solid tool. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Insert size: 11 ●s: 3.59 ●re: 1.6 ●Maximum cutting depth: 10 ●Maximum radial allowance: 5.5 ●iW: 6.8 ●bs: 0.4 ●Direction: Right Material/Finish: ●Carbide
