サンドビック（株）コロマントカンパニー

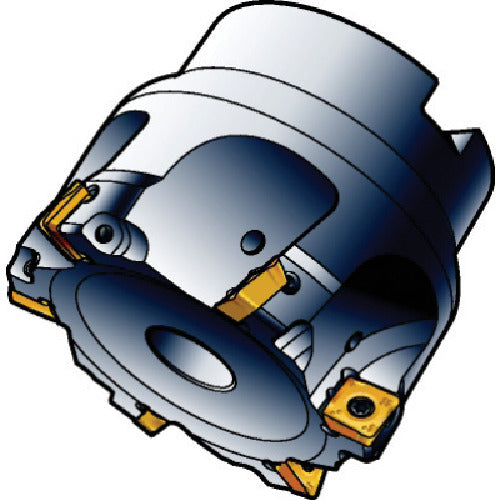

Sandvik CoroMill 490 cutter (455) 490-100Q32-14L 1 unit
Sandvik CoroMill 490 cutter (455) 490-100Q32-14L 1 unit
Regular price
¥106,590
Regular price
Sale price
¥106,590
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

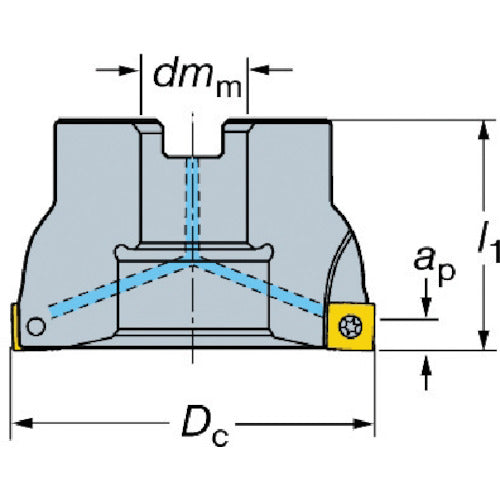

Catalog number: 490-100Q32-14L Features: ● From face milling to shoulder milling ● High precision ● Excellent machining surface Applications: ● Shoulder milling ● Face milling ● Compatible with all work materials ● Course pitch ● Arbor mounting (mm) Specifications: ● Number of teeth CICT (pieces): 5 ● Cutting diameter DC (mm): 100 ● Cutting angle KAPR (°): 90 ● Number of teeth: 5 ● Number of teeth (pieces): 5 ● Dc: 100 ● dmm: 32 ● l1: 50 ● Maximum cutting: 10 ● Maximum rotation speed: 8900 ● Chip size: 14 ● Coolant supply: Coolant center through ● Weight: 1.4
