Sandvik CoroMill 490 Milling Insert (355) 3220 490R-08T308M-KH 10 pieces

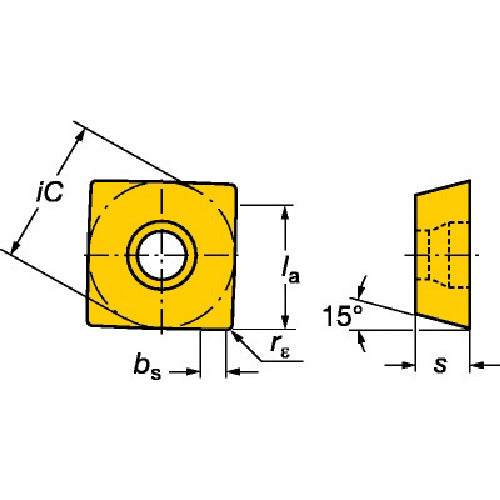

Catalog number: 490R-08T308M-KH Features: ●Insert for 4-corner shoulder milling cutters. ●Sharp cutting edge provides low resistance. ●Wide range of machining and 4-corner insert significantly reduces tool changes. Applications: ●For face milling, shoulder milling, and groove machining. ●For machining that requires good surface roughness. ●For machining with small machines. Specifications: ●Direction: Right ●Insert size: 08 ●iC: 8.5 ●s: 3.3 ●re: 0.8 ●Maximum cutting depth: 5.5 ●Maximum radial allowance: 2 ●bs: 1.2 ●Insert exclusively for T-rail insert seat holder "CoroTurn TR".
