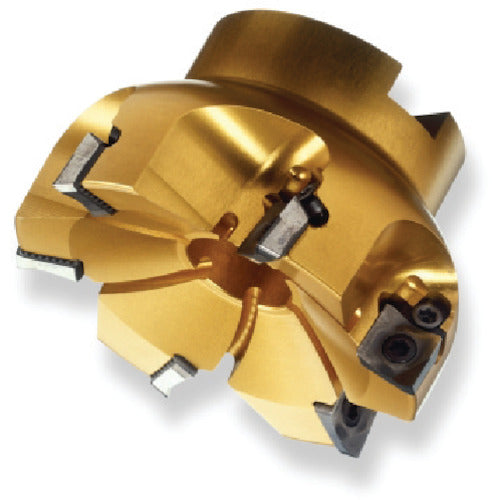

Sandvik CoroMill 590 cutter R590-100Q32A-11M 1 piece

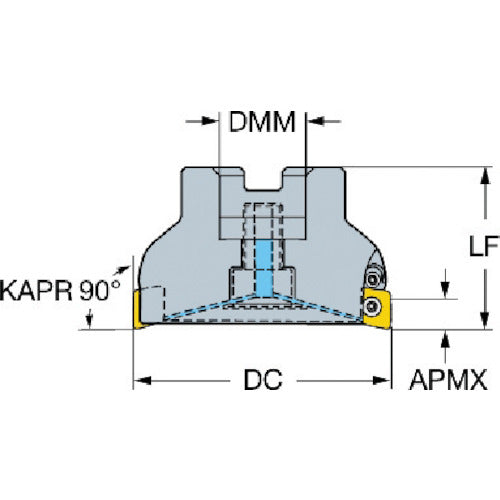

Catalogue number: R590-100Q32A-11M Features: ● From face milling to shoulder milling ● High precision ● Good machining surface ● High speed machining ● Aluminum body Applications: ● Shoulder milling ● Face milling ● For aluminum alloy machining ● Cross pitch ● Arbor mounting (mm) Specifications: ● Number of teeth CICT (pieces): 6 ● Cutting diameter DC (mm): 100 ● Cutting angle KAPR (°): 90 ● Overall length OAL (mm): 50 ● Compatible chip: CoroMill590 chip ● Blade diameter (mm): 100 ● Number of teeth: 6 ● Number of teeth (pieces): 6 ● Overall length (mm): 50 ● Gauge chip: R590-1105.. ● Cutting angle: 90 ● Dc: 100 ● l1: 50 ● Maximum cutting: 11 ● Weight (KG): 1.2 ● Maximum rotation speed: 23800 ● Pitch: Cross pitch ● Suitable for high speed finishing Light cutting face milling cutter, the tool is designed with a serrated tip interface for increased stability and reduced runout. Material/Finish: Aluminum
