Sandvik shoulder milling cutter CoroMill 390 end mill (440) Blade diameter 25 mm Number of blades 2 Shank diameter 25 mm Total length 120 mm R390-025A25-17L 1 piece

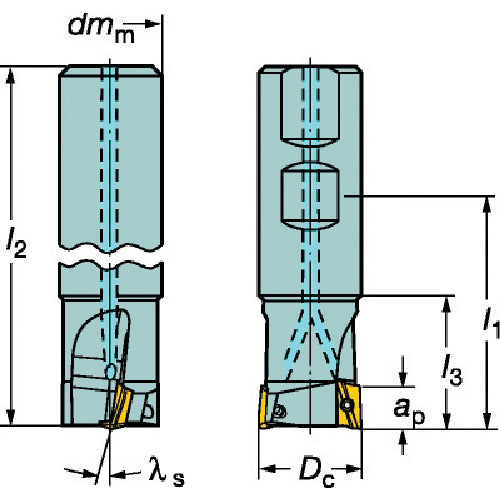

Catalogue number: R390-025A25-17L Features: ● Extremely versatile, enabling productive milling in a wide range of applications and workpiece materials. ● Reliable cutter performance ensures trouble-free milling. ● Easy-to-handle insert clamping improves processing stability. ● Comparable to solid end mills. ● No mismatch. Applications: ● Shoulder milling. ● Groove milling. ● Copy milling. ● Helical milling. ● Ramping. ● Suitable for all types of machining. ● Cylindrical shank. Specifications: ● Number of teeth CICT (pieces): 2 ● Cutting diameter DC (mm): 25 ● Cutting angle KAPR (°): 90 ● Overall length OAL (mm): 120 ● Compatible chip: R390-17 Size ● Shank diameter (mm): 25 ● Blade diameter (mm): 25 ● Number of teeth: 2 ● Number of teeth (pieces): 2 ● Overall length (mm): 120 ● Cutting angle: 90 ● Weight (KG): 0.54 ● Maximum cutting: 15.7 ● Maximum rotation speed: 30800 ● Pitch: Course pitch ● Gauge chip: R390-17.. ● l3: 32 ● l2: 120 ● dmm: 25 ● Dc: 25 ● Coolant supply ● Chip size ● High-precision front and shoulder milling cutter ● All-round tool for various machining ● 17 cutting edges provide both rigidity and sharpness Material / Finish: ● Carbide alloy
