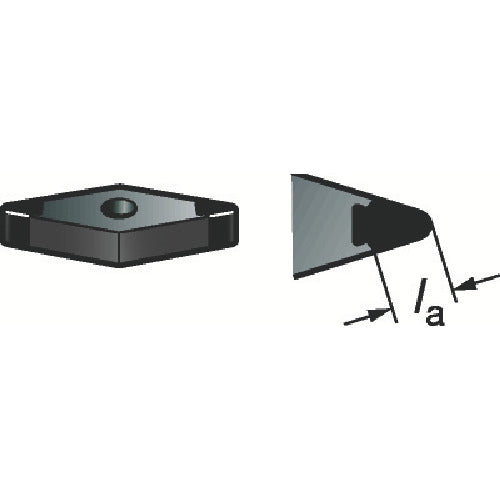

Sandvik T-Max turning ceramic insert (610) 6050 VNGA160412S01525 10 pieces

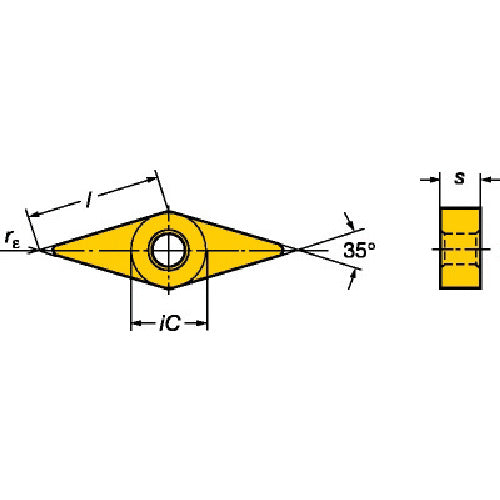

Catalog number: VNGA160412S01525 Features: ● Excellent thermal properties and wear resistance. ● Particularly recommended for continuous finishing. Applications: ● For general turning and high-hardness steel processing. ● For finishing. Specifications: ● Suitable workpiece: High-hardness material ● Insert shape: 35° diamond ● Effective cutting edge length LE (mm): 15.4063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiN ● Processing type: Finishing ● Corner radius (mm): 1.1906 ● Thickness (mm): 4.7625 ● Blade length (mm): 15.4063 ● Insert relief angle (°): 0 ● Processing type: Finishing cutting ● PVD coating
