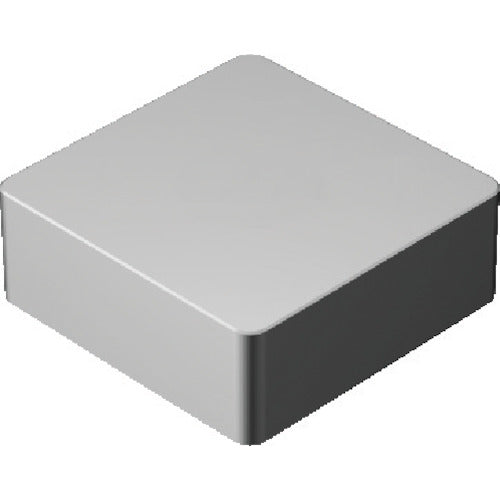

Sandvik T-Max Ceramic Negative Insert for Turning (610) 670 SNGN 12 07 12T01020 10 Pieces

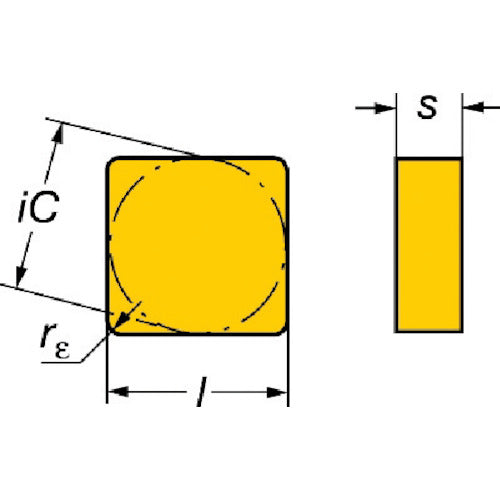

Catalog number: SNGN 12 07 12T01020 Features: ● Whisker-reinforced ceramic material with excellent toughness. ● Particularly for machining heat-resistant alloys under severe conditions. Applications: ● For general turning and machining heat-resistant alloys. Specifications: ● Suitable workpiece: SH ● Insert shape: Square ● Effective cutting edge length LE (mm): 11.5 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 7.9375 ● Corner radius RE (mm): 1.1906 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Medium ● Thickness (mm): 7.9375 ● Blade length (mm): 11.5 ● Insert relief angle (°): 0 ● Machining form: Medium cutting ● Ceramic insert
