サンドビック（株）コロマントカンパニー
Sandvik T-Max P turning ceramic insert (610) 6050 WNGA080404S01525WH 10 pieces
Sandvik T-Max P turning ceramic insert (610) 6050 WNGA080404S01525WH 10 pieces
Regular price
¥29,724
Regular price
Sale price
¥29,724
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

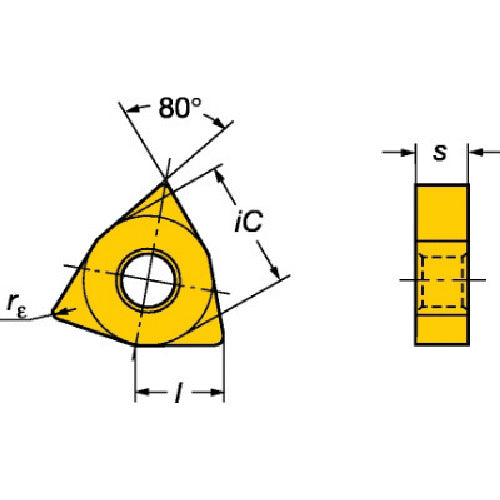

Catalog number: WNGA080404S01525WH Applications: ●For general turning and high-hardness steel processing. ●For finishing processing. Specifications: ●Compatible workpiece: H ●Chip shape: 80° hexagon ●Effective cutting edge length LE (mm): 8.2873 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiN ●Processing type: Finishing ●Corner radius (mm): 0.3969 ●Breaker: WH ●Thickness (mm): 4.7625 ●Blade length (mm): 8.2873 ●Chip relief angle (°): 0 ●Processing form: Finishing cutting ●PVD coating
