Sandvik T-Max P Ceramic Negative Insert for Turning (610) 6190 CNGQ 12 07 12T02520 10 pieces

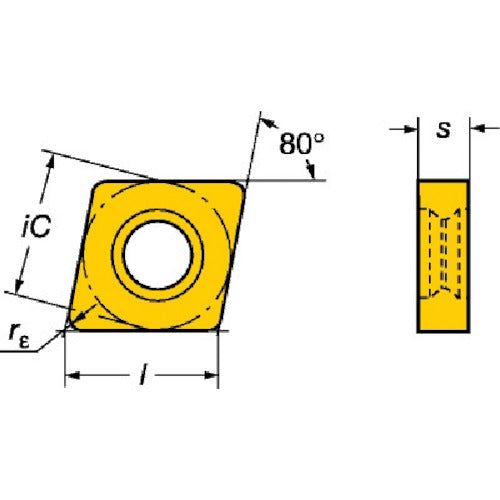

Catalog number: CNGQ 12 07 12T02520 Features: ● Used for high-speed rough machining to finishing of cast iron under good machining conditions. ● Also suitable for light intermittent cutting. Applications: ● For general turning cast iron machining. Specifications: ● Suitable workpiece material: K ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 11.6959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 7.9375 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Finishing ● Thickness (mm): 7.9375 ● Cutting edge length (mm): 11.6959 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● Pure silicon nitride based ceramic material
