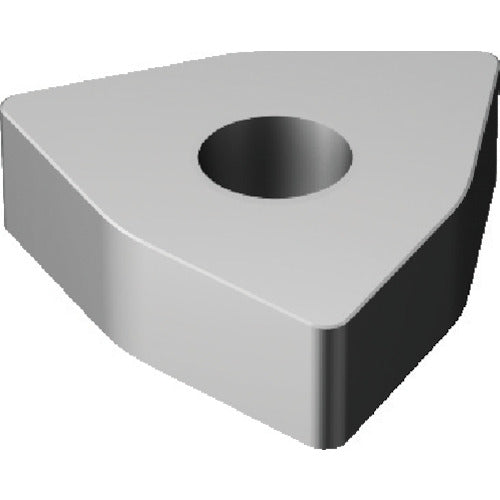

Sandvik T-Max P Ceramic Negative Insert for Turning (610) 6190 WNGA 080408 T01020WG 10 pieces

Catalog number: WNGA 080408 T01020WG Features: ● Used for high-speed rough cutting and finishing of cast iron in good machining conditions. ● Also suitable for light intermittent cutting. Applications: ● For general turning cast iron machining. ● For finishing machining. Specifications: ● Suitable workpiece: K ● Insert shape: 80° hexagon ● Effective cutting edge length LE (mm): 7.8873 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Finishing ● Corner radius (mm): 0.7938 ● Breaker: WG ● Thickness (mm): 4.7625 ● Blade length (mm): 7.8873 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● Uncoated
