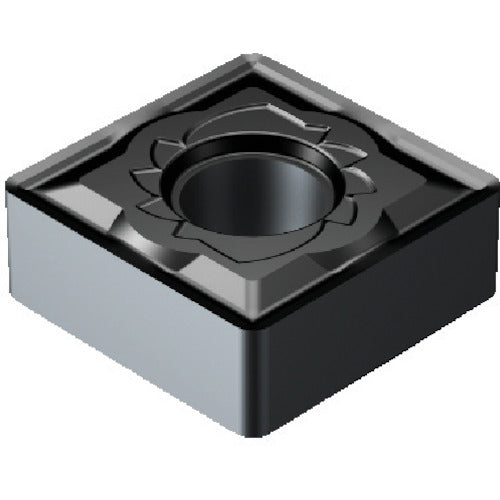

Sandvik T-Max P turning negative insert (110) 1105 SNMG 19 06 16-SM 10 pieces

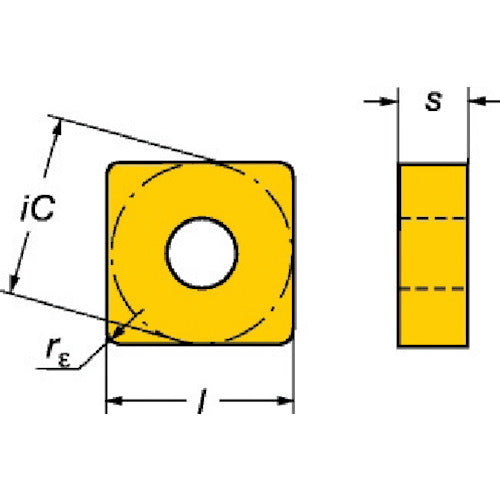

Catalog number: SNMG 19 06 16-SM Features: ● Sharp cutting edge with high machining performance and high toughness. ● Ideal for finishing stainless steel at high cutting speeds. Applications: ● For general turning and machining of heat-resistant alloys. Specifications: ● Suitable workpiece material: MS ● Insert shape: Square ● Effective cutting edge length LE (mm): 12.7 ● Inscribed circle IC (mm): 19.05 ● Thickness S (mm): 6.35 ● Corner radius RE (mm): 1.5875 ● Hole diameter D1 (mm): 7.925 ● Main relief angle AN (°): 0 ● Coating: TiAlN ● Machining type: Medium ● Breaker: SM ● Thickness (mm): 6.35 ● Blade length (mm): 12.7 ● Insert relief angle (°): 0 ● Machining form: Medium cutting ● PVD TiAlN thin film coating material type
