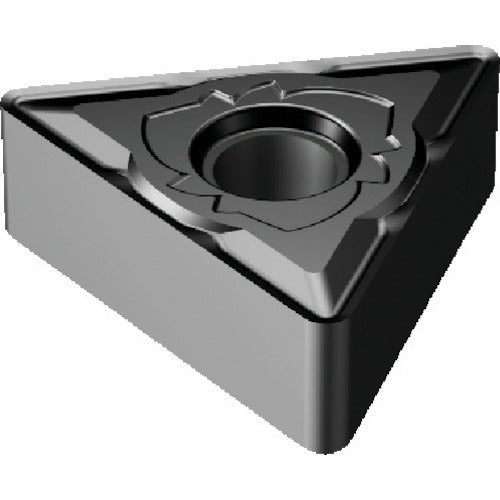

Sandvik T-Max P turning negative insert (110) 1115 TNMG 22 04 08-SM 10 pieces

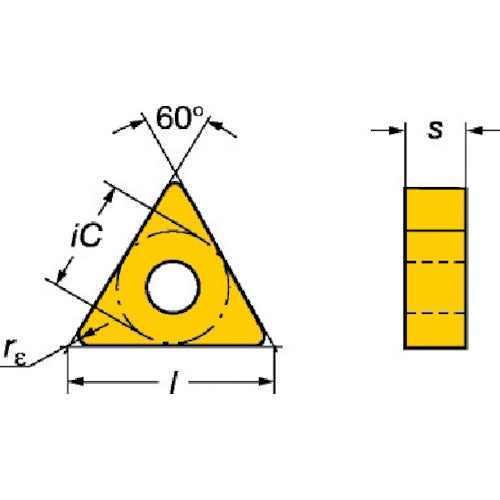

Catalog number: TNMG 22 04 08-SM Features: ● Sharp cutting edge and close contact with ultra-fine grain base material, high high temperature hardness and excellent plastic deformation resistance are combined with excellent cutting edge reliability. ● Uniform flank wear and high machining performance are achieved. Applications: ● For general turning stainless steel machining. ● For finishing stainless steel. Specifications: ● Suitable workpiece material: MS ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 6.4 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiAlN ● Machining type: Medium ● Breaker: SM ● Thickness (mm): 4.7625 ● Blade length (mm): 6.4 ● Insert relief angle (°): 0 ● Machining form: Medium cutting ● PVD thin film coating material type
