Sandvik T-Max P turning negative insert (110) 1125 CNMG 12 04 04-WF 10 pieces

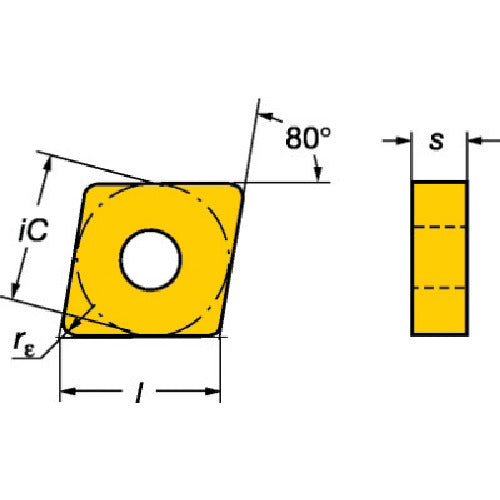

Catalog number: CNMG 12 04 04-WF Features: ●Excellent performance when smooth cutting and excellent cutting edge toughness or surface roughness are required. ●Excellent thermal shock resistance and ideal for light interrupted cutting. Applications: ●For general turning and stainless steel processing. ●For medium to low cutting speeds. Specifications: ● Suitable workpiece material: PM ● Chip shape: Diamond 80° ● Effective cutting edge length LE (mm): 12.4959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiAlN ● Processing type: Finishing ● Breaker: WF ● Thickness (mm): 4.7625 ● Blade length (mm): 12.4959 ● Chip relief angle (°): 0 ● Processing type: Finishing cutting ● PVD coating
