Sandvik T-Max P turning negative insert (110) 1525 SNMG 12 04 08-PF 10 pieces

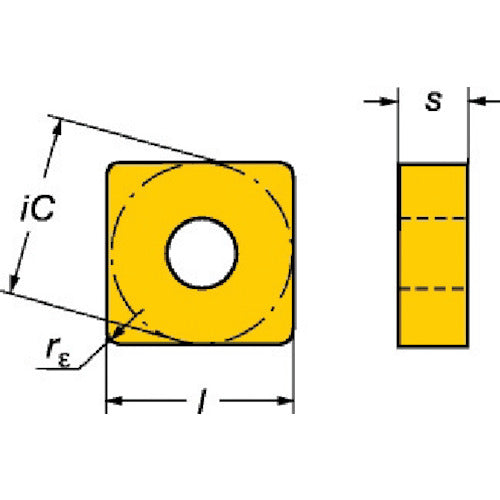

Catalog number: SNMG 12 04 08-PF Features: ●Ideal for cases where excellent surface roughness and sharp cutting edges are required. ●Excellent impact resistance for light intermittent cutting. Applications: ●For general turning steel processing. ●For finishing low carbon steel to low alloy steel, and for tough alloy steel at low to medium cutting speeds. Specifications: ● Suitable workpiece material: PMK ● Chip shape: Square ● Effective cutting edge length LE (mm): 11.9 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + TiN ● Machining type: Finishing ● Breaker: PF ● Thickness (mm): 4.7625 ● Blade length (mm): 11.9 ● Chip relief angle (°): 0 ● Machining form: Finishing cutting ● Carbide material with thin CVD coating and ultra-fine grain base material
