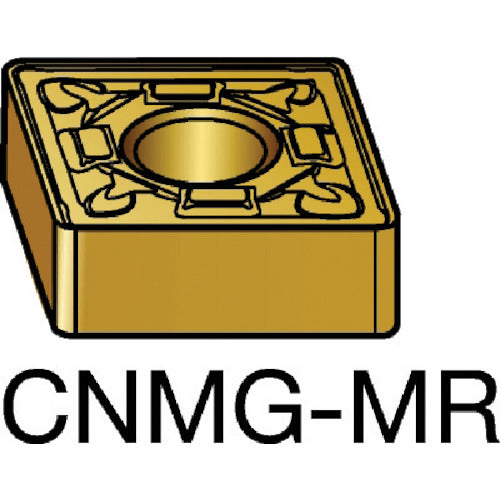

Sandvik T-Max P turning negative insert (110) 2015 CNMG 12 04 16-MR 10 pieces

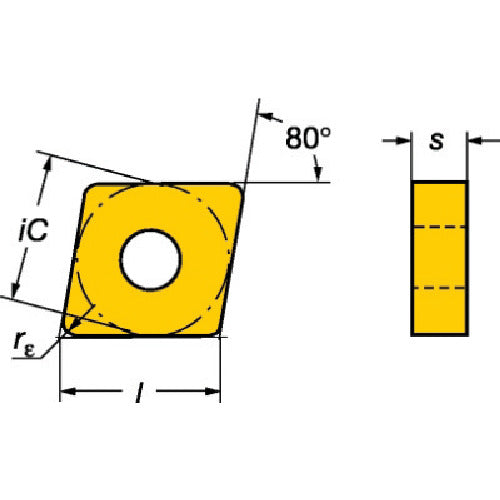

Catalog number: CNMG 12 04 16-MR Features: ● First recommended material for continuous cutting. Applications: ● For general turning and stainless steel machining. ● For medium to high cutting speeds. Specifications: ● Suitable workpiece: M ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 11.2959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.5875 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN+Al2O3+TiN ● Machining type: Roughing ● Breaker: MR ● Thickness (mm): 4.7625 ● Blade length (mm): 11.2959 ● Insert relief angle (°): 0 ● Machining form: Rough cutting ● CVD coating Material/Finish: ● Carbide
