Sandvik T-Max P turning negative insert (110) 2015 DNMG 15 04 08-MF 10 pieces

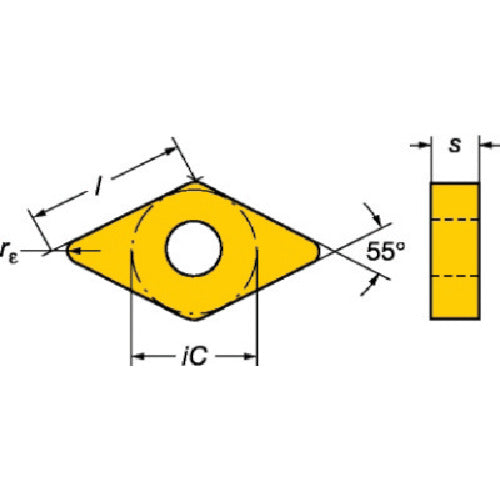

Catalog number: DNMG 15 04 08-MF Features: ● First recommended material for continuous cutting. Applications: ● For general turning and stainless steel processing. ● For medium to high cutting speeds. Specifications: ● Suitable workpiece: M ● Insert shape: Diamond 55° ● Effective cutting edge length LE (mm): 14.7038 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Finishing ● Breaker: MF ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 14.7038 ● Insert relief angle (°): 0 ● Processing form: Finishing cutting ● CVD coated carbide material
