Sandvik T-Max P turning negative insert (110) 2015 SNMG 19 06 12-MR 10 pieces

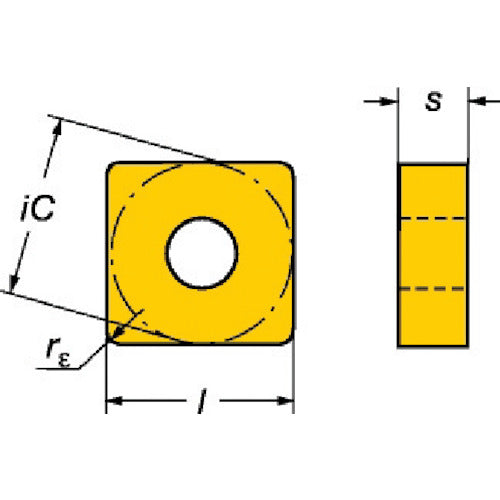

Catalog number: SNMG 19 06 12-MR Features: ● First recommended material for continuous cutting. Applications: ● For general turning and stainless steel processing. ● For medium to high cutting speeds. Specifications: ● Suitable workpiece: M ● Insert shape: Square ● Effective cutting edge length LE (mm): 17.85 ● Inscribed circle IC (mm): 19.05 ● Thickness S (mm): 6.35 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 7.925 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Roughing ● Breaker: MR ● Thickness (mm): 6.35 ● Blade length (mm): 17.85 ● Insert relief angle (°): 0 ● Processing form: Rough cutting ● CVD coated carbide material
