Sandvik T-Max P turning negative insert (110) 2025 SNMG 12 04 12-MM 10 pieces

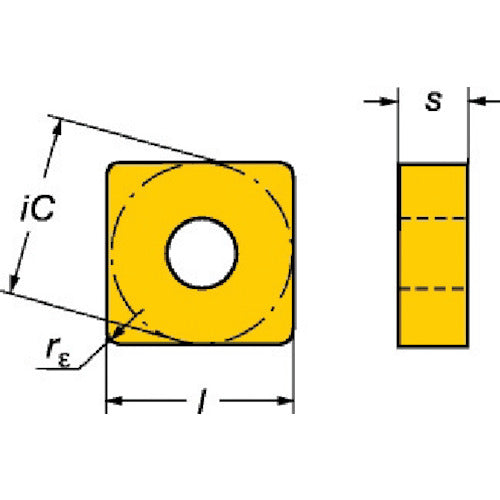

Catalog number: SNMG 12 04 12-MM Features: ● Excellent cutting edge reliability, for intermittent cutting. Applications: ● For general turning and stainless steel processing. ● For semi-finishing to rough processing. Specifications: ● Suitable workpiece: M ● Insert shape: Square ● Effective cutting edge length LE (mm): 11.5 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Medium ● Breaker: MM ● Thickness (mm): 4.7625 ● Blade length (mm): 11.5 ● Insert relief angle (°): 0 ● Processing form: Medium cutting ● CVD coated carbide material
