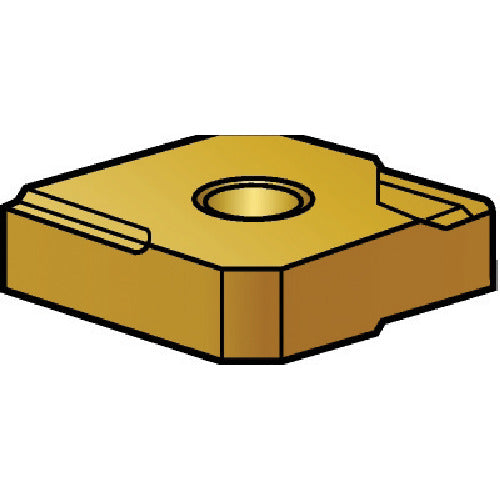

Sandvik T-Max P turning negative insert (110) 2035 DNMG 15 04 04R-K 10 pieces

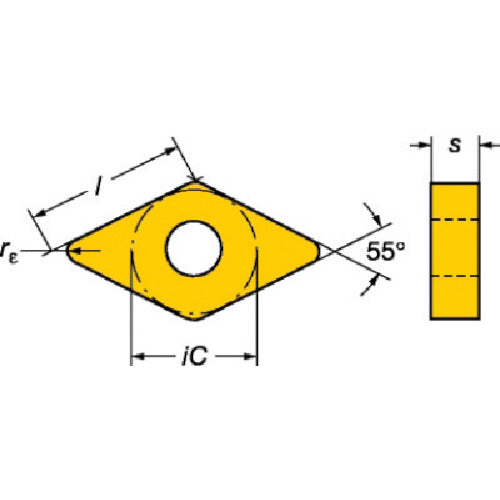

Catalog number: DNMG 15 04 04R-K Features: ● Excellent thermal shock resistance, for high-speed intermittent cutting. Applications: ● For general turning and stainless steel processing. ● For semi-finishing to rough processing. Specifications: ● Suitable workpiece: M ● Insert shape: Diamond 55° ● Effective cutting edge length LE (mm): 15.1038 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiN ● Processing type: Finishing ● Breaker: K ● Thickness (mm): 4.7625 ● Blade length (mm): 15.1038 ● Insert relief angle (°): 0 ● Processing form: Finishing cutting ● PVD coated carbide material
