Sandvik T-Max P turning negative insert (110) 2035 SNMG 12 04 08-MR 10 pieces

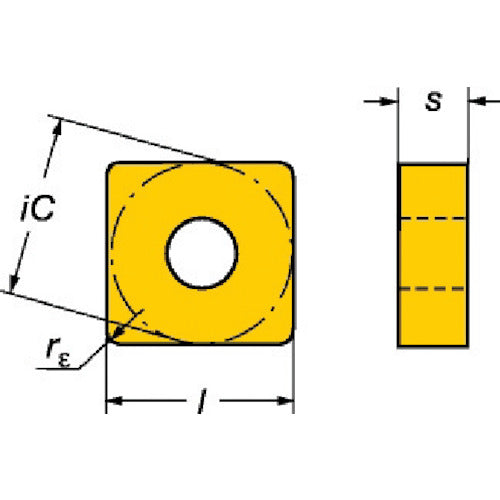

Catalog number: SNMG 12 04 08-MR Features: ● Excellent thermal shock resistance, for high-speed intermittent cutting. Applications: ● For general turning and stainless steel processing. ● For semi-finishing to rough processing. Specifications: ● Suitable workpiece: M ● Insert shape: Square ● Effective cutting edge length LE (mm): 11.9 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiN ● Processing type: Roughing ● Breaker: MR ● Thickness (mm): 4.7625 ● Blade length (mm): 11.9 ● Insert relief angle (°): 0 ● Processing form: Rough cutting ● PVD coated carbide material
