Sandvik T-Max P turning negative insert (110) 3210 CNMG 12 04 16-KM 10 pieces

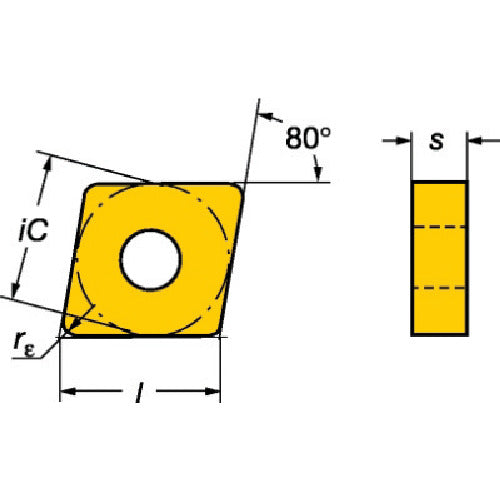

Catalog number: CNMG 12 04 16-KM Features: ● Demonstrates high flank wear resistance. ● Material type suitable for both continuous and intermittent cutting. Applications: ● For general turning cast iron machining. Specifications: ● Suitable workpiece material: K ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 11.2959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.5875 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: KM ● Thickness (mm): 4.7625 ● Blade length (mm): 11.2959 ● Insert relief angle (°): 0 ● Machining form: Medium cutting ● CVD coating
