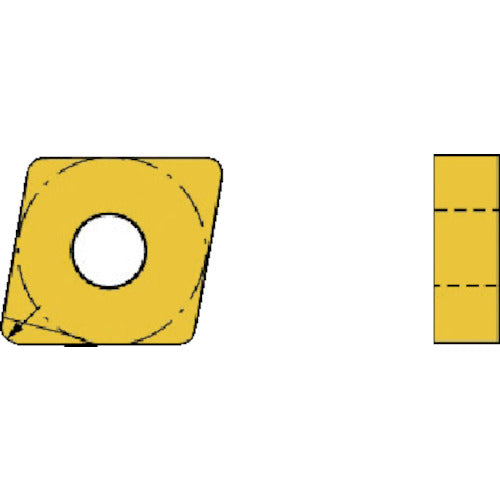

Sandvik T-Max P turning negative insert (110) 3225 CNMG 12 04 08-KF 10 pieces

Catalog number: CNMG 12 04 08-KF Features: ●CVD-coated carbide material with high cutting edge reliability. ●Material suitable for light to heavy intermittent cutting. Applications: ●For general turning cast iron machining. Specifications: ●Suitable workpiece: K ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 12.0959 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiCN+Al2O3+TiN ●Machining type: Finishing ●Breaker: KF ●Thickness (mm): 4.7625 ●Blade length (mm): 12.0959 ●Insert relief angle (°): 0 ●Machining type: Finishing cutting ●CVD coating
