Sandvik T-Max P turning negative insert (110) GC15 CNMG 12 04 04-XM 10 pieces
Sandvik T-Max P turning negative insert (110) GC15 CNMG 12 04 04-XM 10 pieces
Regular price
¥18,096
Regular price
Sale price
¥18,096
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

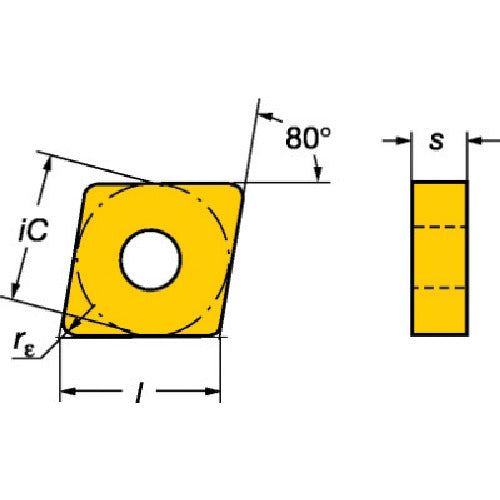

Catalog number: CNMG 12 04 04-XM Features: ●Precision-grade coated carbide tip for external and general internal machining of mixed workpieces. Applications: ●For machining mixed workpieces. Specifications: ●Applicable workpiece material: MS ●Tip shape: Diamond 80° ●Effective cutting edge length LE (mm): 12.4959 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiAlN + TiAlN ●Machining type: Medium ●Breaker: XM ●Thickness (mm): 4.7625 ●Blade length (mm): 12.4959 ●Tip relief angle (°): 0 ●Machining type: Medium cutting ●PVD coating
